Can anyone help me identify this cord?
Posted on 6/1/23 at 11:49 am
Posted on 6/1/23 at 11:49 am

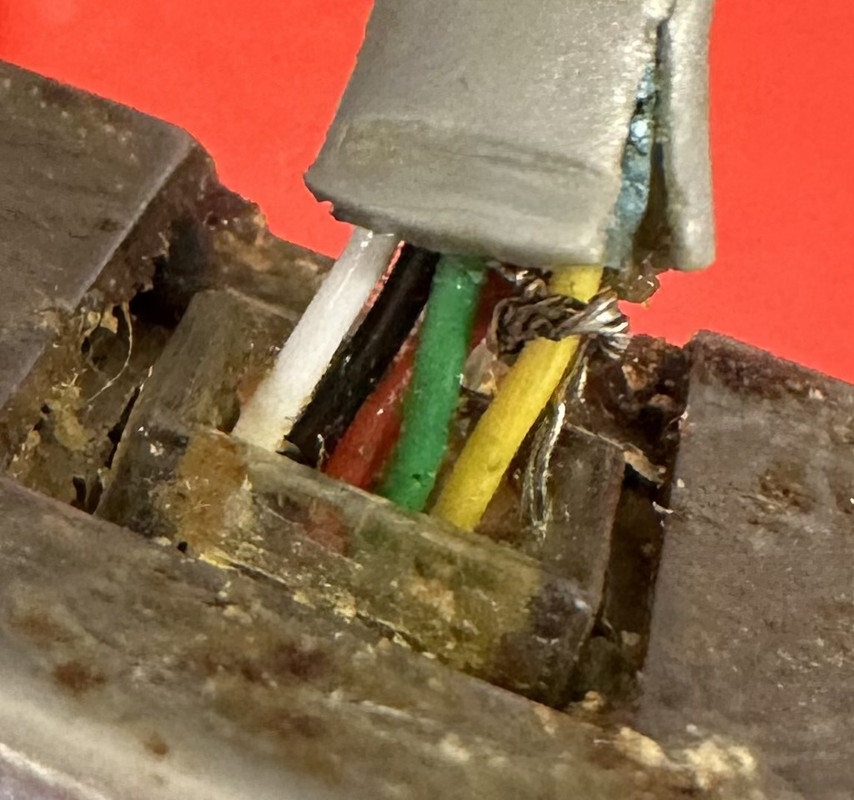

Apologies for the grainy picture. Any idea what this cord is and where I can find one?
3
Posted on 6/1/23 at 11:53 am to GynoSandberg
Romex
Home Depot, Lowes, Ace Hardware....
ETA: n/m, not Romex
Home Depot, Lowes, Ace Hardware....
ETA: n/m, not Romex
This post was edited on 6/1/23 at 12:24 pm
Posted on 6/1/23 at 12:00 pm to GynoSandberg
can you take a picture of the ends? looks more like a old school 8 conductor data cable than romex to me
sort of like this
sort of like this
Posted on 6/1/23 at 12:03 pm to diat150
I know it’s gross, it’s in a commercial kitchen
Posted on 6/1/23 at 12:07 pm to GynoSandberg
can you type out all of the markings on the cable? should reference the # of conductors and the gauge of the wires on the jacket somewhere.After getting the cable you would have to get the right size connectors and a crimper and properly crimp the ends. where are you located?
Posted on 6/1/23 at 12:07 pm to GynoSandberg
Therer's really, really bad terminations and then there's the abomination in the photo.
Possibly a comms cable but I'm not discounting power.
Possibly a comms cable but I'm not discounting power.
Posted on 6/1/23 at 12:11 pm to VABuckeye
quote:
Possibly a comms cable but I'm not discounting power.
prob both
Posted on 6/1/23 at 12:12 pm to diat150
Yeah, comms with limited power. There's a Belden cable with those conductors. It's not flat but those are the uses.
Posted on 6/1/23 at 12:18 pm to diat150

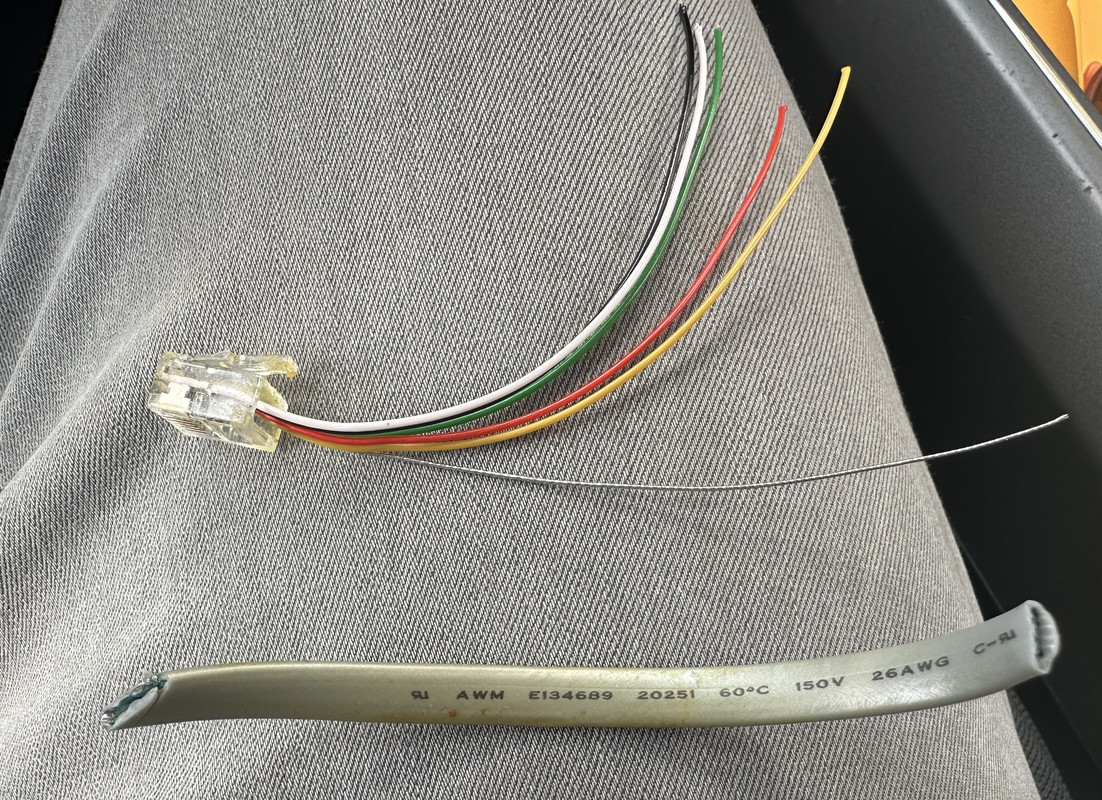

Only writing I can find on the wire
awm E134689 20251 60*C 150v 26AWG C- ?
Posted on 6/1/23 at 12:26 pm to GynoSandberg
Comms. It would have to be a pretty short run to carry power and at most it would be low voltage power. What devices are it connecting?
Posted on 6/1/23 at 12:36 pm to GynoSandberg
quote:
awm E134689
This is what you need to google to find your replacement cable.
It is POTs cable
LINK
Posted on 6/1/23 at 12:38 pm to VABuckeye
The cord connects from a kitchen display screen to a “bump bar” - a device that allows you to clear an order off the screen once it’s completed.
The KDS pulls orders from the point of sale but this particular cord does the function I listed above
The KDS pulls orders from the point of sale but this particular cord does the function I listed above
Posted on 6/1/23 at 12:39 pm to notsince98
Yeah, I thought that but it's 5 conductors (unless one was stubbed off). POTS is 4, 6 or 8 conductors.
AWM means appliance wire material. POTS also uses twisted pair which this cable is not.
AWM means appliance wire material. POTS also uses twisted pair which this cable is not.
This post was edited on 6/1/23 at 12:42 pm
Posted on 6/1/23 at 12:39 pm to GynoSandberg
Yeah, it's comms. It probably powers the "bump bar" as well. Unless the bump bar has a separate power cable connected to it.
This post was edited on 6/1/23 at 12:43 pm
Posted on 6/1/23 at 12:51 pm to VABuckeye
Yep, it’s the only wire going to the bar
I appreciate all the info. The POS vendor is telling me I need to replace the whole KDS at the cost of a few thousand $. I’m fairly certain it’s the cord so I just need to nail down which one it is. Is my best bet taking the wire somewhere? My ops guy is tech illiterate more than I am, I’m trying to make it easy for him
I appreciate all the info. The POS vendor is telling me I need to replace the whole KDS at the cost of a few thousand $. I’m fairly certain it’s the cord so I just need to nail down which one it is. Is my best bet taking the wire somewhere? My ops guy is tech illiterate more than I am, I’m trying to make it easy for him
Posted on 6/1/23 at 12:57 pm to GynoSandberg
Judging by the care they took in terminating that cable I think your suspicion is solid.
Posted on 6/1/23 at 1:02 pm to VABuckeye
the POS company installed this equipment when we built this location, its made it 6 years without issue, surprisingly Posted on 6/1/23 at 1:02 pm to VABuckeye
quote:
Yeah, I thought that but it's 5 conductors (unless one was stubbed off). POTS is 4, 6 or 8 conductors.
AWM means appliance wire material. POTS also uses twisted pair which this cable is not.
It is using 6. The gray/uninsulated one is probably just being used for bonding.
Posted on 6/1/23 at 1:03 pm to notsince98
5 + ground. AKA drain wire.
This post was edited on 6/1/23 at 3:12 pm
Posted on 6/1/23 at 1:53 pm to GynoSandberg
Looks like an RJ12.
