Shiplap question
Chip and Joanna jokes aside, I'm wanting to redo my basement game room by shiplapping two walls. I've read up on it on several diy sites, and seems pretty straight forward. Most look like they are ripping playwood sheets into 6"-8" strips, then tacking to the wall.

Has anyone done this or something similar? Seems easy enough. I plan on painting each board before putting on the wall, but even then, I can't see it being too much. What thickness plywood? 1/4"?
This post was edited on 7/7 at 5:44 pm


ItNeverRains
LSU Fan
Franklin, TN
Member since Oct 2007
14308 posts

re: Shiplap question

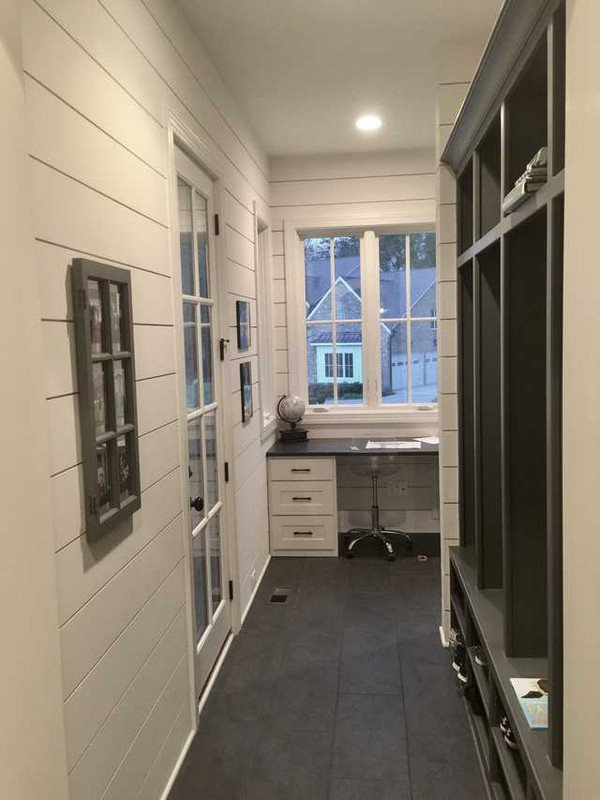

I used MDF over drywall. more consistent/modern looking. Very happy with outcome i'll take a picture and edit later.


This post was edited on 7/8 at 7:02 am


Replies (0)
Replies (0)
140
wickowick
LSU Fan
Head of Island
Member since Dec 2006
39951 posts

re: Shiplap question
How large are the walls?


fillmoregandt
Ole Miss Fan
Over the Mountain
Member since Nov 2009
12598 posts
 Online

re: Shiplap question
7' tall, roughly 15' long (each). The other two walls are either closets or bookshelves/gun racks


bbvdd
Alabama Fan
Memphis, TN
Member since Jun 2009
17034 posts

re: Shiplap question
I built my bed and made shiplap for it. I bought rough sawn poplar and milled it. Left part of it rough to give an old look. I also used hand planes to flatten one face, again for an old look.

Turned out great.


Replies (0)
Replies (0)
00
Cracker
Montana Fan
in a box
Member since Nov 2009
9335 posts

re: Shiplap question
buy it at 84 lumber the other big box stores may have it but I now at 84 its a hell of a lot cheeper to buy than make it.


Replies (0)
Replies (0)
00
keakar
Member since Jan 2017
10564 posts
 Online

re: Shiplap question
ya they making the fake shite but thats good enough for interior accent walls.

get 1/4" plywood and rip it in 6" or 8" widths

use 16 penny nails as spacers for 1/8" gaps and use 18g brad nailer to put them up with

it will look great as long as you make straight cuts and take your time to measure accurately and use a trim piece in the corners so you dont see any bad end cuts
This post was edited on 7/7 at 6:47 pm


ryno0212
Member since Jul 2019
6 posts

re: Shiplap question
Work in progress... used 1/4 plywood in our guest bathroom



fillmoregandt
Ole Miss Fan
Over the Mountain
Member since Nov 2009
12598 posts
 Online

re: Shiplap question
That looks good


So, the 1/4” is good for thickness? Seen a couple posts and other places that use 1/4”


Replies (0)
Replies (0)
00
gumbo2176
Member since May 2018
3994 posts

re: Shiplap question
I've lived in houses with Shiplap siding and it is nothing like you are describing. The boards are about 7-8 inches high each and the top of the board has a cove cut into it to reduce the thickness by about half and the board that goes on top of it has a rabbet that covers the top of the board making it water-tight.

The shiplap I'm familiar with is made of solid wood.


TD SponsorTD Fan
USA
Member since 2001
Thank you for supporting our sponsors
Advertisement
keakar
Member since Jan 2017
10564 posts
 Online

re: Shiplap question
quote:

Work in progress... used 1/4 plywood in our guest bathroom


that looks great, but i would be kinda scared of mold issues in the gaps with all the moisture in bathrooms


Replies (0)
Replies (0)
63
Rossberg02
Member since Jun 2016
1919 posts

re: Shiplap question
1/4” sanded plywood, rip it into 8’ strips, and use a brad nailer to hang them with a penny/nickel gap. If your runs are longer than 8’ might want to stagger the rows so you don’t have one seam that stands out. If you don’t want to do that, maybe 45* the ends that will meet up for the seam...


Replies (0)
Replies (0)
22
dukesilver72
LSU Fan
Texas
Member since Feb 2015
631 posts

re: Shiplap question
T
quote:

he shiplap I'm familiar with is made of solid wood


Agreed. We just completed our build, we used pine for the shiplap in Living and Master Bath


Replies (0)
Replies (0)
21
halleburton
Member since Dec 2009
1181 posts

re: Shiplap question
Get smooth Hardie siding and cut to length. Will save you a lot of (most likely uneven) ripping and looks good. Comes 5/16 thick.

eta: apply over sheetrock w/ gaps to your liking. avoid corner boards if at all possible.
This post was edited on 7/7 at 8:35 pm


Replies (0)
Replies (0)
03
Art Vandelay
LSU Fan
LOUISIANA
Member since Sep 2005
8164 posts

re: Shiplap question
Buy mdf shiplap or nickel gap. frick all that ripping and spacing. It’s the way to go if interior and painting.


Replies (0)
Replies (0)
61
ryno0212
Member since Jul 2019
6 posts

re: Shiplap question
It’s call faux shiplap. Instead of ripping down the Sheetrock and putting up boards you just give it the appearance of real shiplap.


DMAN1968
Member since Apr 2019
69 posts

re: Shiplap question
quote:

Instead of ripping down the Sheetrock

If only doing an accent wall why would you rip out the sheetrock?


ducksnbass
LSU Fan
Member since Apr 2014
577 posts

re: Shiplap question
Yes, I did our dining room wall using 1/4 plywood. Turned out great. Used nickels to keep the space between them consistent. I can't remember the exact width I made them, but I just figured out what width came out even leaving no waste after I ripped them down on the table saw.


Replies (0)
Replies (0)
00
ryno0212
Member since Jul 2019
6 posts

re: Shiplap question
Accent wall you wouldn’t have to rip out Sheetrock. I’m just saying true shiplap isn’t on top of Sheetrock. If your doing a wall that has a window or door frame real shiplap boards would be to thick and you would have to most likely redo the frame. That won’t be a problem if you use 1/4 ply.


Replies (0)
Replies (0)
12
Golfer
LSU Fan
Member since Nov 2005
72333 posts
 Online

re: Shiplap question
quote:

Chip and Joanna jokes aside, I'm wanting to redo my basement game room by shiplapping two walls. I've read up on it on several diy sites, and seems pretty straight forward. Most look like they are ripping playwood sheets into 6"-8" strips, then tacking to the wall.

Has anyone done this or something similar? Seems easy enough. I plan on painting each board before putting on the wall, but even then, I can't see it being too much. What thickness plywood? 1/4"?


You can buy "shiplap" siding that has the rabbet grooves from a lumber supply store like Holmes or 84 Lumber.

If you don't want to go this route, just get 1x8's and stack them with a "penny gap".

If you're laying it over the sheetrock, you'll have to do 1/4" smooth plywood or mdf and rip them into your desired width.
This post was edited on 7/8 at 9:22 am
