Circuit board repair
Posted on 8/23/23 at 10:18 am
Posted on 8/23/23 at 10:18 am
So i bent/broke a few male pins on a CB
They connect to the female wire conector
I need a new male pin connector on the board
Pins are small, bout 1 MM
Anybody in BR do this ? Small hobbyists ?
New board is $400
Yes i have googled, no luck
They connect to the female wire conector
I need a new male pin connector on the board
Pins are small, bout 1 MM
Anybody in BR do this ? Small hobbyists ?
New board is $400
Yes i have googled, no luck
2
Posted on 8/23/23 at 11:29 am to Drop4Loss
Photo?
If you can get the right part(s), it shouldn't be too difficult with a hot air rework station.
If you can get the right part(s), it shouldn't be too difficult with a hot air rework station.
This post was edited on 8/23/23 at 11:31 am
Posted on 8/23/23 at 2:40 pm to Lonnie Utah
Posted on 8/23/23 at 7:16 pm to Drop4Loss
Can't really tell much from that photo, but they look like standard header pins to me. Shouldn't be more than a 10 min solder job. Bend them to the right shape and solder them on.
What does the female connector look like?
What does the female connector look like?
This post was edited on 8/23/23 at 7:19 pm
Posted on 8/23/23 at 7:23 pm to Drop4Loss
Disclaimer, I haven't soldered anything in more than 20 years.
An 8 pin IC seems like a fairly simple clip/replace/solder job.
You pulled the board, I assume you'd be comfortable learning how to solder. If not, check out remote control/hobbyist forums for planes and cars, and there will be someone that can fix you up.
An 8 pin IC seems like a fairly simple clip/replace/solder job.
You pulled the board, I assume you'd be comfortable learning how to solder. If not, check out remote control/hobbyist forums for planes and cars, and there will be someone that can fix you up.
Posted on 8/23/23 at 8:00 pm to LemmyLives
Whay to delicate for me to solder 8 pins
Ill find a hobby shop
Ill find a hobby shop
This post was edited on 8/23/23 at 8:02 pm
Posted on 8/24/23 at 11:14 am to Lonnie Utah
The female side
LINK
It was corroded on so I had to use some needle nose to pry it off. Several of the pins broke, its a mess.
I went ahead and ordered the circuit board......shite
LINK
It was corroded on so I had to use some needle nose to pry it off. Several of the pins broke, its a mess.
I went ahead and ordered the circuit board......shite
This post was edited on 8/24/23 at 11:16 am
Posted on 8/24/23 at 4:20 pm to Drop4Loss
Is this the piece it interfaces with?
Posted on 8/26/23 at 6:28 am to Drop4Loss

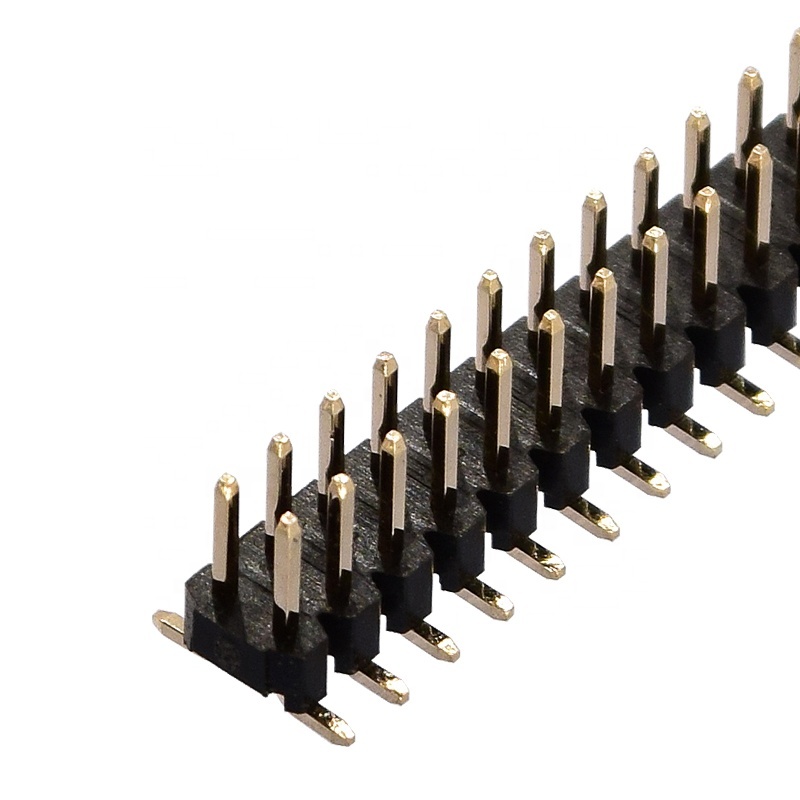

Looks like a pretty standard header.
