Wiring 5-15P to L14-30R
Posted on 1/15/24 at 11:45 am
Posted on 1/15/24 at 11:45 am

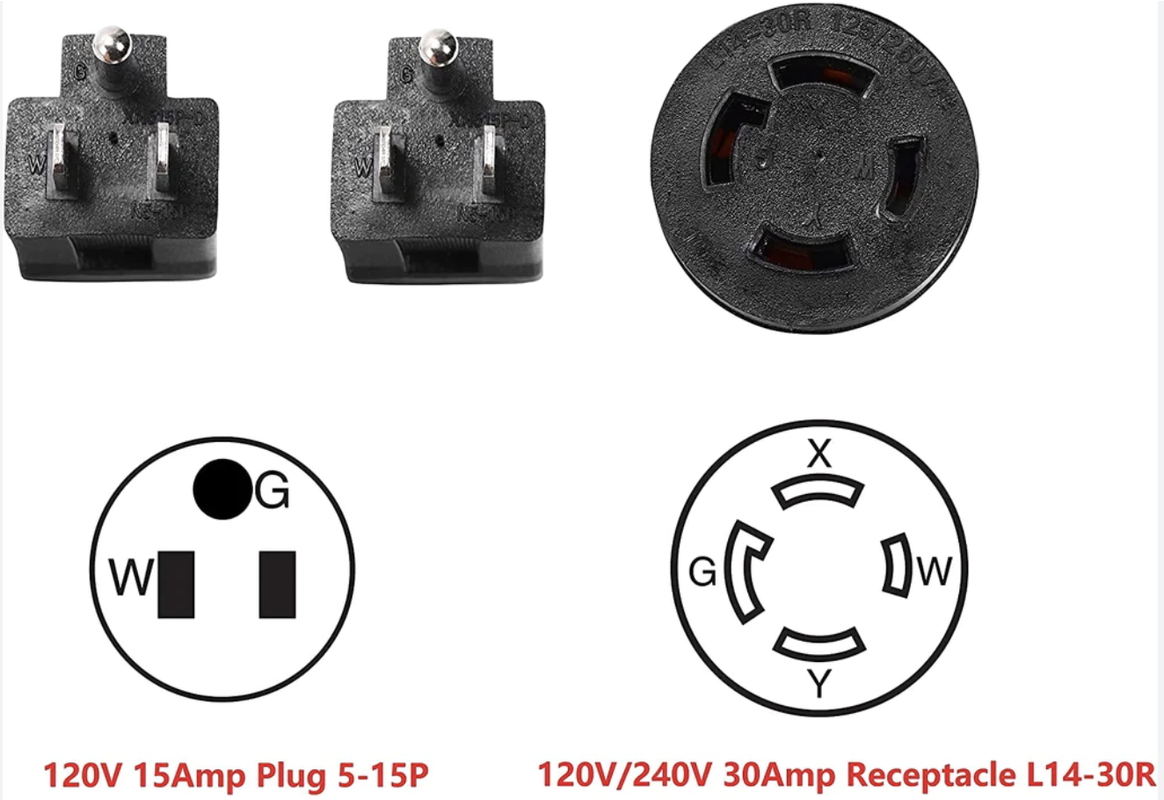

What is the correct way to wire a 5-15P male plug to an L14-30R female receptacle?
The 5-15P only uses 3 wires (black, white, and green). The L14-30R has connections for 4 wires.
Our Mardi Gras floats have a L14-30P on them and I want to test the sound system. I have had this set up in the past but someone took my old set up.
The 5-15P only uses 3 wires (black, white, and green). The L14-30R has connections for 4 wires.
Our Mardi Gras floats have a L14-30P on them and I want to test the sound system. I have had this set up in the past but someone took my old set up.
This post was edited on 1/15/24 at 11:49 am
1
Posted on 1/15/24 at 11:57 am to Major Dutch Schaefer
Your going to have better luck looking for a generator adapter, that's what they are commonly used for.
Here is one from Grainger.
LINK
Here is one from Grainger.
LINK
Posted on 1/15/24 at 12:17 pm to Specktricity
I already have everything to make it, I just wanna make sure the wiring is correct
Posted on 1/15/24 at 12:42 pm to Major Dutch Schaefer
Oh, my bad. well in that case you would just not use one of the hots. You only use both x any y if you need 240V. Either one will provide 120V hot to neutral.
Assuming 3 conductor cable:
white-w
green-g
black-either x or y
Assuming 3 conductor cable:
white-w
green-g
black-either x or y
Posted on 1/15/24 at 2:01 pm to Specktricity
I was not sure if I could use either hot or if it had to be a specific one.
